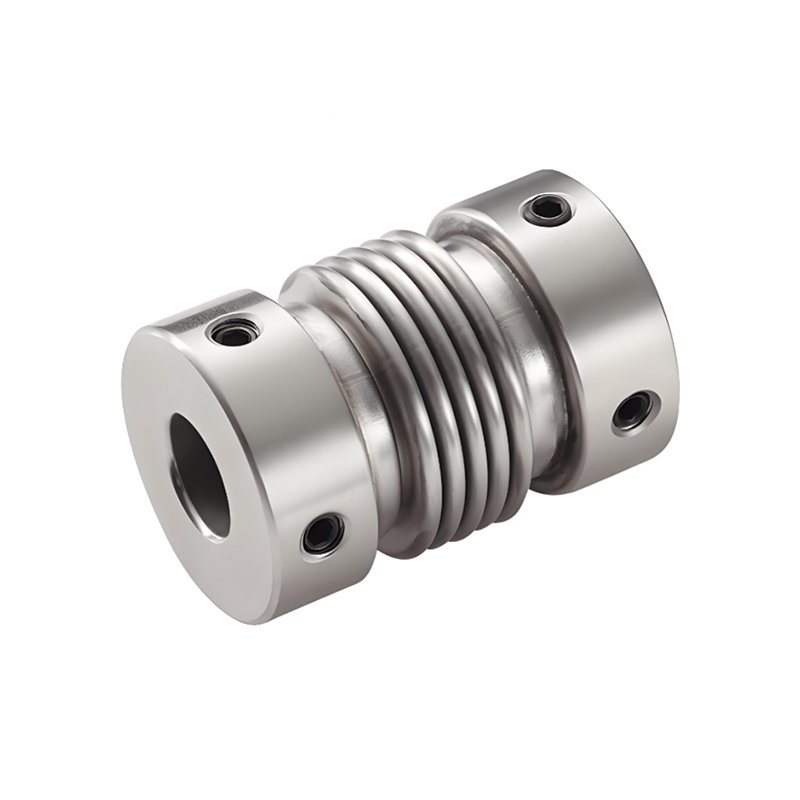

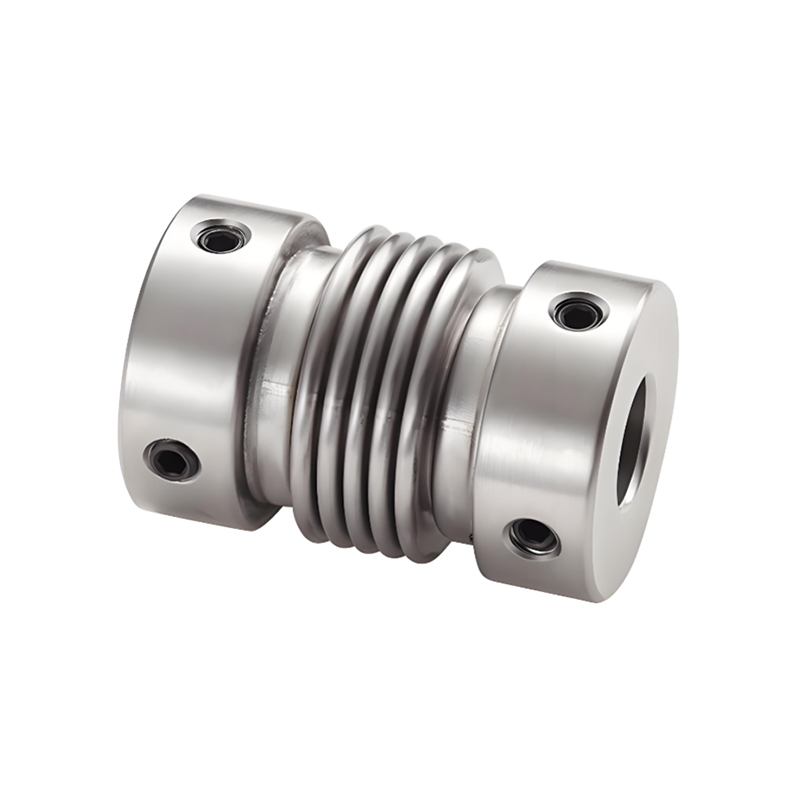

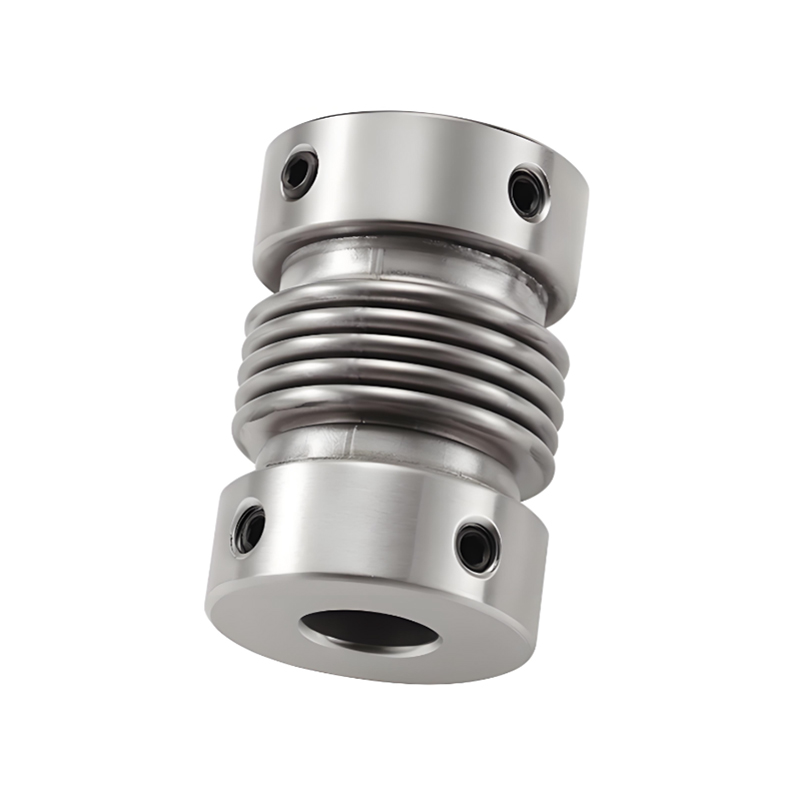

RSK-CPRG God korrosjonsbestandighet Rustfritt stål belgkoblinger posisjoneringsskrue

P/N

ΦD

L

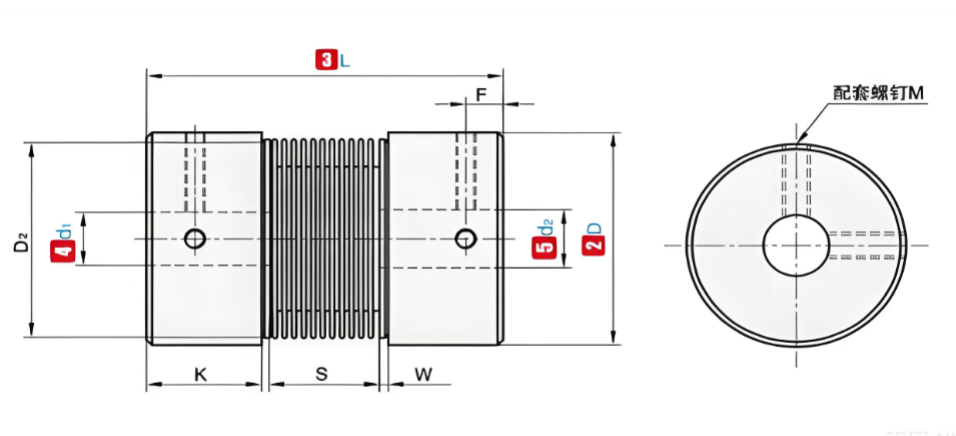

Standard indre diameter (mm)

K

W

S

D₂

F

M

Momentstramming (N.m)

RSK-CPRG

16

27

4-5-6-6,35-7-8

7.5

2

8

13.5

3

M3

1.2

20

32

5-6-6,35-7-8-9-9,525-10

7.2

2.8

12

18

3.5

M3

1.2

22.5

34

5-6-6,35-7-8-9-9,525-10

8.05

2.8

12.3

20.2

3.6

M4

2.5

25

37

6-6,35-7-8-9-9,525-10

9.5

3

12

20.2

4.5

M4

2.5

32

42

8-9-9.525-10-11-12-12.7-14-15

8

4

18

27.2

4.5

M5

5

Note: The inner holes at both ends of the coupling can be freely combined with the minimum and maximum inner diameters. The inner diameter sizes marked in the table are for reference only. The hole diameter required by the customer is also for reference only. For the hole diameter required by the customer, please contact us.

P/N

ΦD

L

Nominelt dreiemoment (N.m)

Tillat skjevhet (mm)

Tillat tilt(∠°)

Tillat aksialt avvik (mm)

Tillat RPM

Statisk torsjonsstivhet (N.m/rad)

Treghetsmoment (N.m)

Vekt (g)

RSK-CPRG

16

27

1.2

0.1

2

0.3

-0,1

16000

150

7,9X10⁻⁷

22

20

32

2.2

0.1

2

0.3

-0,1

13000

220

2,0X10⁻⁶

36

22.5

34

2.7

0.15

2

0.3

-0,1

12000

300

6,2X10⁻⁶

54

25

37

3

0.15

2

0.5

-1.3

11000

330

6,7X10⁻⁶

73

32

42

3.7

0.2

2

0.5

-1.3

10000

490

2,0X10⁻⁵

128

Note: The above inertial torque and technical parameters are measured by the standard of maximum aperture. The maximum rated torque value is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
